High-speed precision engraving and milling machine
EMC-500 high-speed precision engraving and milling machine
Description
Parameter
Configuration

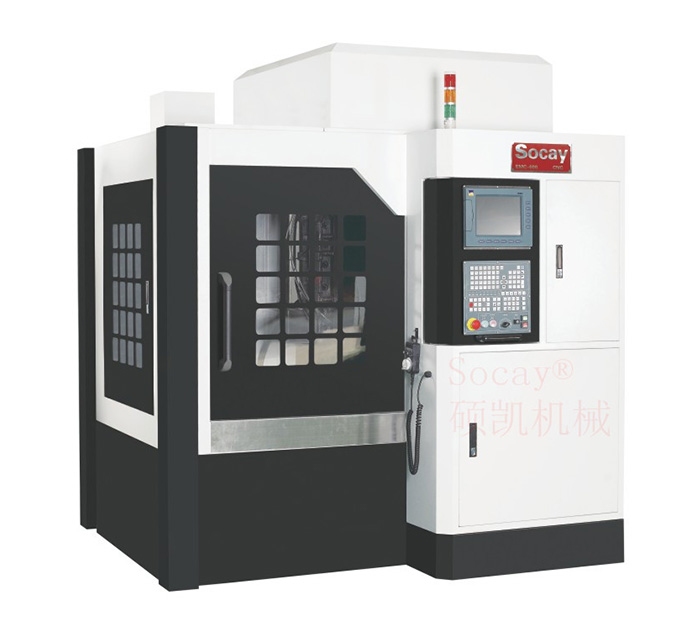

Shuokai high-speed precision engraving and milling machine series EMC500 / 600/700
It is a gantry structure made of high-grade cast iron with high stability. Parts and components are imported from Japan, Germany and Switzerland, providing reliable guarantee for customers to process high-precision products.
Features：
1、The engraving and milling machine is a gantry structure, the base is cast from high-grade cast iron, the internal dragon skeleton is strengthened, all the cast iron is quenched, and it has high stability and is not easy to deform. Overall heavier than similar models.
2、Closed cover, double-sided door opening seal is convenient for product processing. Using Japanese and Taiwan technologies to develop a new generation of special high-speed engraving and milling machine control system.
3、The main components are imported: Japan, Switzerland, Germany, Taiwan, such as: servo motor, wire rail, coupling, screw assembly. Strengthen high precision and high efficiency characteristics.
4、For different materials: steel, copper, aluminum, graphite, organic glass, etc. can be precision processed.
5、The spindle can cool itself during high-speed work to ensure that the heat will not damage the characteristics of the spindle.
6、The precision ball screw is closely measured with the linear guide and the coupling to ensure stability during the processing and return to zero clearance.
7、This model can be installed at any time according to customer needs according to customer needs, to improve production efficiency.

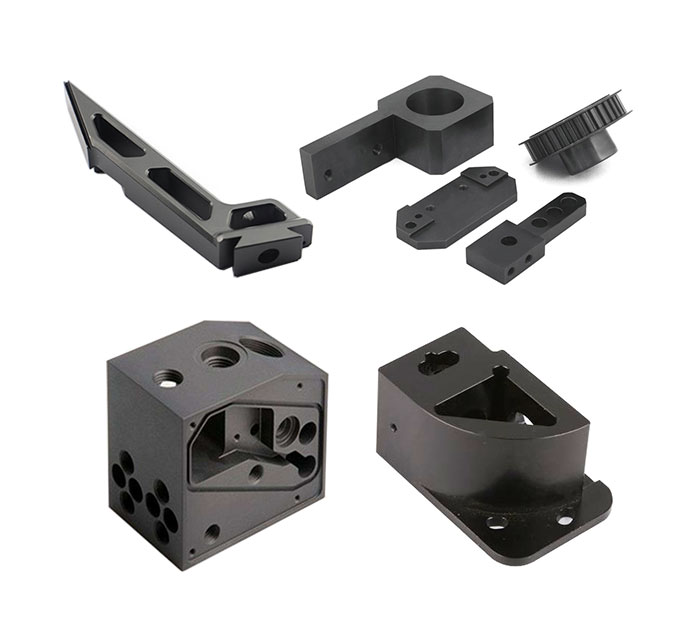

Shuokai's high-speed precision engraving and milling has a wide range of applications. It is widely used for the rough and precision machining of precision mold molds, batch processing of mold copper electrodes, aluminum products, shoe mold manufacturing, jig processing, copper, watch and eyewear industries. It has high cost performance, fast processing speed and good finish of processed products, which is favored by more and more customers.
Machine characteristics：
1、The machine tool adopts unique beam and bed integration technology. Gantry type high rigidity structure. To ensure long-term high precision and service life of machinery, strong earthquake resistance.
2、The three-axis adopts imported high-precision linear guide rail and ball screw, which is wear-resistant and has a small friction coefficient.
3、Using Japanese NSK bearings and imported couplings.
4、High-speed, high-torque, high-precision electric spindle, can meet the needs of high-speed machining and accuracy guarantee; can achieve high-speed milling of small precision molds and parts, high machining accuracy, low vibration, low noise.
5、The control system adopts Taiwan's new generation and Baoyuan high-speed CNC system, which is easy to learn, use and master.
6、The drive system adopts the Japanese Yaskawa and Japan Sanyo AC drive servo systems, which runs smoothly, has excellent acceleration performance, low noise, and high control accuracy.
|
Specification |
Unit |
EMC-500 |
EMC-600 |
EMC-700 |
|
X axis travel |
mm |
500 |
600 |
700 |
|
Y axis travel |
mm |
400 |
500 |
500 |
|
Z axis travel |
mm |
230 |
300 |
380 |
|
Distance from spindle nose to table |
mm |
50-280 |
150-450 |
150-530 |
|
Distance from spindle center to end face of fuselage |
mm |
450 |
450 |
450 |
|
Worktable area |
mm |
500 x 450 |
700 x 420 |
1300 x 600 |
|
Maximum load |
Kg |
200 |
350 |
400 |
|
T-slot (width * quantity * spacing) |
|
3-14 x 100 |
3-14 x 100 |
5-14 x 80 |
|
X / Y / Z axis rapid feed |
m/min |
15/15/15 |
15/15/15 |
15/15/15 |
|
Cutting rate |
mm/min |
8000 |
8000 |
6000 |
|
Spindle speed |
rpm |
24000 |
24000 |
24000 |
|
Special speed |
rpm |
15000/18000/30000 |
15000/18000/30000 |
15000/18000/30000 |
|
Spindle end specifications |
|
BT-20 / BT-30 |
BT-25/BT-30 |
BT-32/BT-30 |
|
Spindle power |
kw |
4.5/5.5 |
4.5/5.5 |
5.5/7.5 |
|
positioning accuracy |
mm |
±0.005 /300 |
±0.005 /300 |
±0.005 /300 |
|
Repeatability |
mm |
±0.003 |
±0.003 |
±0.003 |
|
Air pressure requirements |
Kg/cm² |
6 |
6 |
6 |
|
electricity demand |
kw |
15 |
15 |
15 |
|
Mechanical weight |
kg |
2600 |
3200 |
3800 |
|
Dimensions |
mm |
1800x1500x1900 |
1900x1600x2000 |
2000x1750x2200 |
